Jeep Wrangler JL and Gladiator JT (2018-2022) HEIGH10 10" Touchscreen Radio Plug-and-Play Replacement Kit | Displays Vehicle Information and Off-Road Mode
49RB10JW18B
$2,162.00
$1,599.00
SAVINGS: 26%
CarPlay & Android Auto
Vehicle Gauges
Off-Road Gauges
4 Camera Inputs
Hands-Free Bluetooth
Climate Controls
15-Band Adjustable EQ
Intermediate Install
CarPlay & Android Auto
Vehicle Gauges
Off-Road Gauges
4 Camera Inputs
Hands-Free Bluetooth
Climate Controls
15-Band Adjustable EQ
Intermediate Install
Free Shipping On Orders Over $399
Overview
Description
Upgrade your Jeep's radio with a 10-inch infotainment system. Retain all OEM features, add new off-road vehicle gauges, and interact with on-screen climate controls, vehicle settings, and more. All in one easy to install, plug-and-play package.
- Not compatible in Wrangler 4XE Hybrid models
Features
10-Inch Touchscreen
Add a full visual experience to your Wrangler or Gladiator with 16.7 million colors. Customize the illumination & background, pinch & zoom, & anti-glare.
On-Screen Vehicle Information & Gauges
Jeep-specific screens and apps with many user customizations. All enhanced with off-road data including transfer case, current position (latitude/longitude), altitude, steering angle, and more.
Retain OEM Features
Retains features you love in your Jeep.
Music, Video, & More
Bluetooth, Android Auto, Apple CarPlay, SiriusXM-ready, HDMI, and 4 camera inputs.
GPS Navigation
An integrated navigation system operates without data connection; GPS microSD card from iGo sold separately.
We're Here To Help
Installation guide with video and pictures included.
What's In The Box
- Stunning 10-inch touchscreen display/infotainment system
- Factory matched radio mounting dash kit
- Complete vehicle integration module
- Link Adapter
- High-definition factory camera retention module
- Vehicle & radio specific plug-n-play harnessing
- A satellite antenna adapter (allows you to retain factory-installed SiriusXM antenna, tuner sold separately : SXV300V1)
- AM/FM antenna adapter
- USB retention cables
- Chime Speaker
- Manual
Specifications
GENERAL
-
Recording Resolution: 1024 x 600
-
Screen Size: 10 inches
-
Model Number: RB10JW18B
-
UPC: 609098834353
-
Manufacturer's Warranty - Parts: 1 year
-
Operating Voltage: 9.0VDC to 18VDC
-
Grounding system; Negative Ground
-
Max current consumption: 10A fused
DIMENSIONS
-
Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
-
Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)
DISPLAY
-
10-inch Diagonal
-
16:9 aspect ratio
-
1024 x 600
-
Pixels: 1,843,200
-
Active area 222.72 (W) x 125.28 (H) mm
-
Operating Temperature (C) -20° to 70°
AUDIO
-
Load impedance: 4Ω nominal / 2Ω allowable
-
Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
-
Audio output level (max): 4.0V preout
-
EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
-
Gain: ±12dB (2dB/step)
-
HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
-
Slope: 6dB, 12dB, 18dB
-
Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
-
Slope: 6dB, 12dB, 18dB
-
Gain: -14dB to 7dB (1dB/step)
-
Phase: 0 or 180
-
Speaker level: ±9dB (1dB/step)
-
Time Alignment: 0 to 133 step (inch/ms)
FM TUNER
-
87.9MHz to 107.9MHz
-
Usable sensitive 0dB (mono S/N: 30dB)
-
SNR: 65dB
AM TUNER
-
530KHz to 1710KHz
-
Usable sensitive 0dB (mono S/N:20dB)
-
SNR 58dB
USB
- USB 2.0
- Max current supply 1.5A
- USB Class: MSC (Mass Storage Class), and MTP (Media Transfer Protocol)
- File system: FAT32, NTFS
BLUETOOTH
-
V4.2 dual
-
4dBm Class2
-
2.4GHz to 2.48GHz
CAMERA(S) VIDEO INPUTS
-
NTSC OR PAL video formats
HDMI INPUT
-
Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p
TOSLINK (OPTICAL)
-
Output: 48khz Variable
BACKGROUND IMAGE (USER)
-
File Format: JPG / PNG
-
Resolution: 1024 x 600
-
File size is not limited
AUDIO/VIDEO FORMATS AUDIO
-
MPEG-1 Audio Layer-3 (.mp3)
-
FLAC (.flac)
-
MPEG-2 Advanced Audio (.aac)
-
MPEG-4 Audio (.m4a)
-
Windows Audio (.wav)
-
OGG Audio (.ogg)
VIDEO
-
QuickTime (.mov)
-
MPEG-4 Video (.mp4)
-
Microsoft AVI (.avi)
-
MPG Video (.mpg)
-
MPEG Video 1/2 (.mpeg)
-
VOB DVD (.vob)
-
Flash Video (.flv)
-
JPEG (.jpg)
-
CompuServe GIF (.gif)
-
PNG (.png)
-
JPEG (.jpeg)
-
Bitmap(.bmp)
New Firmware
Click Here For Radio Firmware Download, Stinger UN1810 Update 09-03-21 Note: For Jeep or RAM Integrated Kits, this release requires Radio Pro Advanced Firmware Version 14, visit https://pac-audio.com/firmware-updates/ for the corresponding firmware download.
Release Notes: Fixed Bugs
- Fixes units getting stuck on the boot up screen.
Support
Find the answers to many common questions:
Warranty Information - Radio Replacement Kits & Bundles
Stinger Off-Road Radio Kits are warrantied against defects in materials One (1) Years from purchase date. Stinger Off-Road will, at its discretion, repair or replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.
Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.
Note: Products purchased from unauthorized dealers are not covered under warranty.
Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warrant
LET THE ADVENTURE BEGIN...
Jeep® Wrangler and gladiator 10-Inch Radio Upgrade With Navigation And Off-Road Mode
Complete Radio Replacement Kit
For All Jeep Wrangler JL And Gladiator JT Models
Upgrade your Jeep's radio with the all-new, 10-inch infotainment system from Stinger Electronics. Retain all OEM features, add new off-road vehicle gauges like pitch and roll, and interact with on-screen climate controls, vehicle settings, and more. All in one easy to install, plug-and-play package.
COVERS ALL
Wrangler JL & Gladiator Models
Introducing RadioPro’s new advanced fully integrated Jeep kit for Stinger’s HEIGH10 radios. The kit enables you to replace a Jeep Wrangler factory radio with a show-stopping HEIGH10 while retaining all factory features and adding even more upgraded features!
Packed with media features like Android Auto and Apple CarPlay, hands-free Bluetooth, SiriusXM radio, and HDMI, stay entertained whether you're taking a road trip or just on your daily commute. And with safety features like 4 camera inputs and integrated GPS (microSD card sold separately), you can rest easy knowing we've got your back.
This complete multimedia dash replacement kit has everything you need:
- Stunning 10-inch touchscreen, Jeep interface that retains OEM steering wheel controls
- All-in-one Jeep radio replacement interface that retains OEM steering wheel controls and adds Jeep specific safety applications
- Factory Jeep antenna adapter
- Custom-fit JL/JT flush-mount radio dash kit
- RB10JW18 Installation Guide & FREE Stinger Gift - TL-PRY3 Stinger Pry Tool
YOUR MEDIA YOUR WAY
Every Feature Your Need
Gain total access to your smartphone's music and navigation capabilities.
- Apple CarPlay®, Google Android Auto™, SiriusXM-Ready™ with Replay
- Built-in MicroSD card slot for (optional) iGO Navigation
- AM/FM radio with PTY
- 2 USB rear inputs, 1.5-Amp output
- Hands-free Bluetooth® 4.2
- A2DP with aptX™ (for hands-free calling and music streaming)
- HDMI input

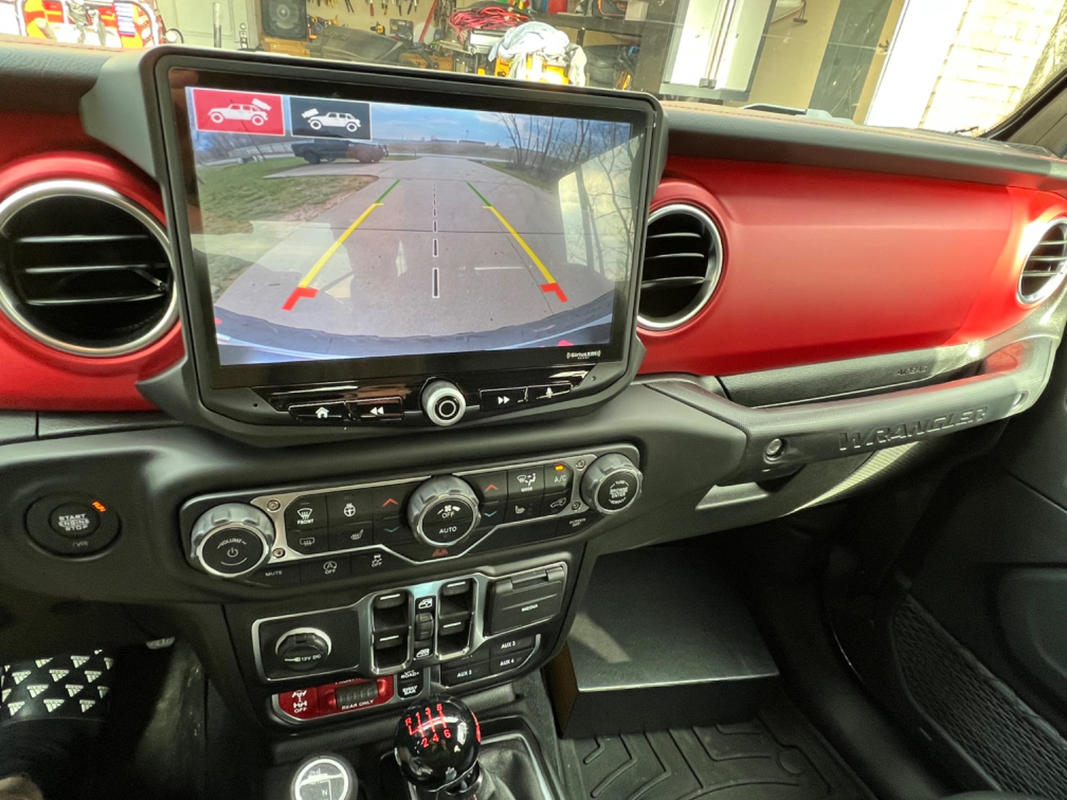

SAFETY FIRST
Complete Camera Integration
In a world where road accidents are commonplace, HEIGH10 can help reduce risk, increase safety and protect your precious cargo.
- 4 camera inputs, selectable via camera mode display, turn signal for blind spot viewing or simply by adding a rocker switch for trailer or tow viewing.
- Rear camera audio input enables the driver to hear sound from an optional RV camera microphone.
- Built-in micro SD card slot for optional NextGen iGO navigation
- Personalizable background
FULL VIEW
Vehicle Information & Gauges
- Vehicle Information Screen: Displays tire pressure with custom pressure threshold, current vehicle status, and view and clear Check Engine status
- Vehicle Climate Control Screen
- Vehicle Gauge Screen: Displays 8 Vehicle Performance Gauges at any time. Save up to 2 preset screens with your favorite gauges!
- Vehicle Performance Screen: Quickly see your speed, RPM, and performance stats including 0-60mph time, 60-0mph brake distance, and ¼ mile time.
- Vehicle Off- Road Screen: Live Pitch and Roll on custom JEEP graphics
- Vehicle Drivetrain Screen
COVERS ALL
Wrangler JL Models
Introducing RadioPro’s new advanced fully integrated Jeep kit for Stinger’s HEIGH10 radios. The kit enables you to replace a Jeep Wrangler factory radio with a show-stopping HEIGH10 while retaining all factory features and adding even more upgraded features!
Packed with media features like Android Auto and Apple CarPlay, hands-free Bluetooth, SiriusXM radio, and HDMI, stay entertained whether you're taking a road trip or just on your daily commute. And with safety features like 4 camera inputs and integrated GPS (microSD card sold separately), you can rest easy knowing we've got your back.
This complete multimedia dash replacement kit has everything you need:
- Stunning flush-mount 10-inch touchscreen, Wrangler JL interface that retains OEM steering wheel controls
- All-in-one Jeep Wrangler JL radio replacement interface that retains OEM steering wheel controls and adds Jeep specific safety applications
- Factory Jeep Wrangler JL antenna adapter
- Custom-fit Jeep Wrangler JL radio dash kit
- RB10JW18 Installation Guide & FREE Stinger Gift - TL-PRY3 Stinger Pry Tool
YOUR MEDIA YOUR WAY
Every Feature Your Need
Gain total access to your smartphone's music and navigation capabilities.
- Apple CarPlay®, Google Android Auto™, SiriusXM-Ready™ with Replay
- Built-in MicroSD card slot for (optional) iGO Navigation
- AM/FM radio with PTY
- 2 USB rear inputs, 1.5-Amp output
- Hands-free Bluetooth® 4.2
- A2DP with aptX™ (for hands-free calling and music streaming)
- HDMI input
SAFETY FIRST
Complete Camera Integration
In a world where road accidents are commonplace, HEIGH10 can help reduce risk, increase safety and protect your precious cargo.
- 4 camera inputs, selectable via camera mode display, turn signal for blind spot viewing or simply by adding a rocker switch for trailer or tow viewing.
- Rear camera audio input enables the driver to hear sound from an optional RV camera microphone.
- Built-in micro SD card slot for optional NextGen iGO navigation
- Personalizable background
FULL VIEW
Vehicle Information & Gauges
- Vehicle Information Screen: Displays tire pressure with custom pressure threshold, current vehicle status, and view and clear Check Engine status
- Vehicle Climate Control Screen
- Vehicle Gauge Screen: Displays 8 Vehicle Performance Gauges at any time. Save up to 2 preset screens with your favorite gauges!
- Vehicle Performance Screen: Quickly see your speed, RPM, and performance stats including 0-60mph time, 60-0mph brake distance, and ¼ mile time.
- Vehicle Off- Road Screen: Live Pitch and Roll on custom JEEP graphics
- Vehicle Drivetrain Screen
OFF-ROAD FEATURES
OFF-ROAD FEATURES
Take Your Next Off-Roading Adventure To The Next Level
VEHICLE INFORMATION SCREEN
- Tire pressure with custom pressure threshold
- Current vehicle status – including door open/closed/removed
- View and clear check engine status
VEHICLE INFORMATION SCREEN
- Tire pressure with custom pressure threshold
- Current vehicle status – including door open/closed/removed
- View and clear check engine status

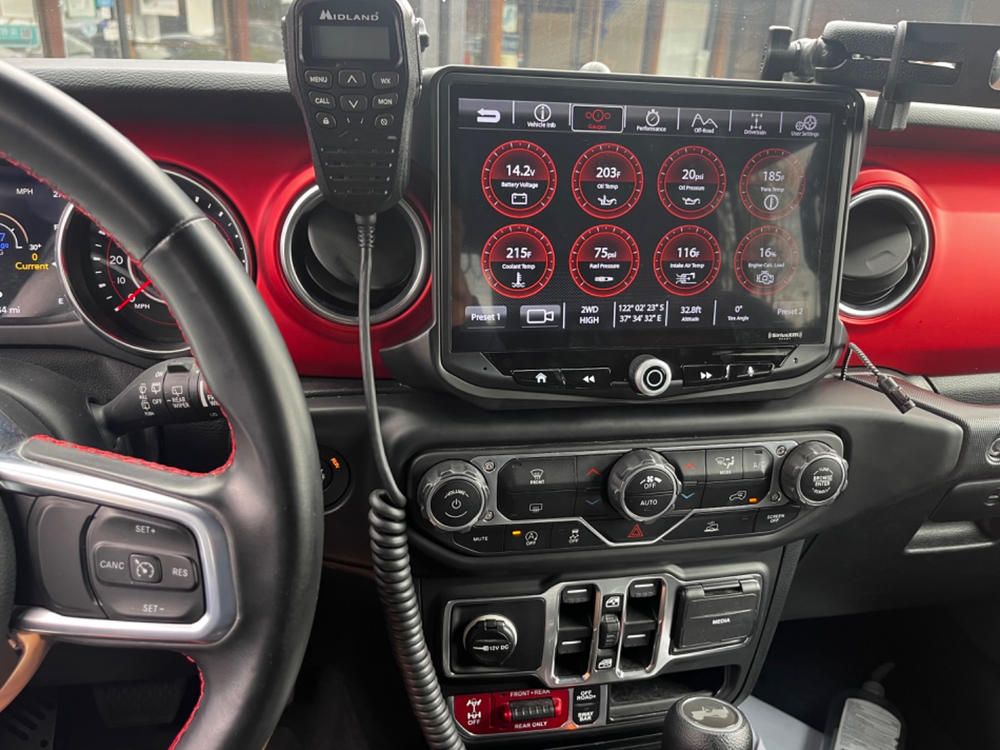

VEHICLE GAUGES
- Eight gauges on screen, save up to 2 presets
- Battery voltage
- Oil temperature and Oil pressure
- Transmission temperature
- Coolant temperature… and many more
VEHICLE GAUGES
- Eight gauges on screen, save up to 2 presets
- Battery voltage
- Oil temperature and Oil pressure
- Transmission temperature
- Coolant temperature… and many more

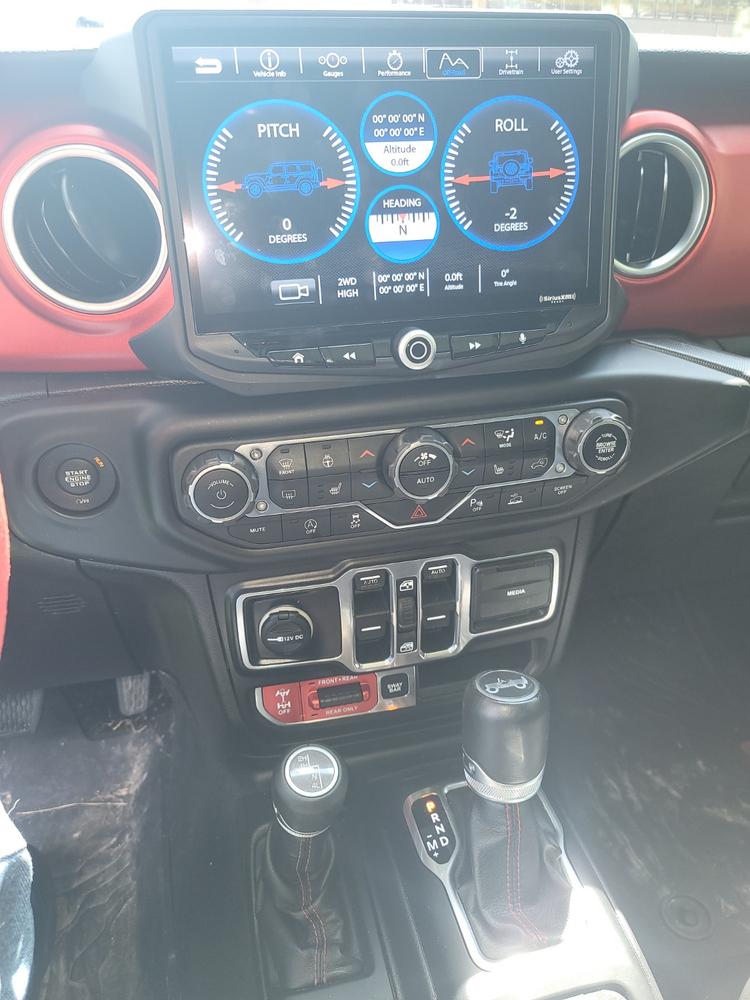

VEHICLE OFF-ROAD SCREEN
- Pitch
- Roll
- GPS coordinates
- Compass
VEHICLE OFF-ROAD SCREEN
- Pitch
- Roll
- GPS coordinates
- Compass
VEHICLE OFF-ROAD SCREEN
Live camera view with real time Pitch and Roll gauges
VEHICLE OFF-ROAD SCREEN
Live camera view with real time Pitch and Roll gauges
VEHICLE DRIVETRAIN SCREEN
Enhanced with JEEP off-road data including:
- Transfer case
- Current position (latitude/longitude)
- Altitude
- Steering angle
VEHICLE DRIVETRAIN SCREEN
Enhanced with JEEP off-road data including:
- Transfer case
- Current position (latitude/longitude)
- Altitude
- Steering angle
VEHICLE PERFORMANCE SCREEN
- Speed
- RPM
- Current/best 0-60mph time
- Current/best 60-0mph brake distance
- Current/best . mile time
VEHICLE PERFORMANCE SCREEN
- Speed
- RPM
- Current/best 0-60mph time
- Current/best 60-0mph brake distance
- Current/best . mile time
Transform Your Drive With Android Auto And Apple CarPlay
Android or iPhone? We've got you covered with both Android Auto and Apple CarPlay.
Android Auto and Apple CarPlay give you everything you love about your phone while driving but in a safer, less-distracting way in your dash. Send and receive messages and phone calls, listen to music and podcasts, and access your phone’s navigation apps all from your radio. We've even included flush-mountable dual USB ports to connect your phone. Trust us, Android Auto and Apple CarPlay will forever change your driving experience.
Your Media, Your Way
Hear The Difference
Customize your sound your way. A digital fiber optic output that's DSP-ready, a 15-band equalizer with visual display, and 6CH output with subwoofer control are just a few of the sonic capabilities built for the true audiophile.
Hands-Free Bluetooth
Answer calls and listen to music from your Bluetooth-enabled device. Avoid traffic tickets with the convenience and safety of hands-free Bluetooth. Built-in microphone and optional, external microphone included. Bluetooth 4.2 with aptX technology ensures the best sound quality.
SiriusXM with Replay
Satellite radio from SiriusXM-ready. Enjoy your favorite SiriusXM radio channels and shows. Compatible with Replay, you can pause, rewind and replay up to 60 minutes of live SiriusXM content. SiriusXM tuner and subscription required (sold separately).
HDMI Input
Enjoy video and other HDMI content on the road. Long roadtrip? Connect external DVD players, streaming devices, and other HDMI-compatible media players. Intended for passenger use only. Driver is prohibited by law from viewing video while in motion. HDMI cable not included.
More Amazing Features
Integrated GPS
No phone data? No problem! The on-board map database from iGO (microSD card sold separately) doesn’t require a data connection, so whether you are high in the mountains or out in the open desert you can be confident your route guidance is safe and accurate.
OEM Wrangler Interfacing
All-in-one Jeep radio replacement. Installation and wiring is a breeze. The RB10JW18B package comes with Wrangler JL and Gladiator JT specific harnesses and interfaces. Retain your steering wheel controls, factory amplifier, and adds the Jeep specific safety applications
4 Camera Inputs
Get a full view. Capture every second of the thrill ride by adding up to 4 cameras. Switch cameras via the touchscreen or set up automatic triggers.
Flush Mount 10-Inch Touchscreen
Stunning 10-inch touchscreen. Add a full visual experience to your Wrangler with 16.7 million colors -- all in 1024 x 600 high-resolution. Customize the illumination and background, pinch and zoom (not available on all apps), and anti-glare.
Easy To Install
DIY-friendly, simple install that takes as little as 90 minutes. We've engineered all wiring and harnesses to be plug-and-play with no splicing or soldering required. Just follow our step-by-step instruction manual or watch our installation video.
FAQ
What's the difference between the Stinger Heigh10 And the RB10JW18B?
The Stinger Heigh10® is the 10-inch touchscreen infotainment system from Stinger Electronics. The RB10JW18B is the complete Jeep Wrangler JL and Jeep Gladiator radio replacement kit -- it includes the Stinger Heigh10 in addition to all of the Jeep-specific integration harnesses, adapters, mounting hardware, and modules necessary to completely upgrade your Jeep infotainment system. All parts of the kit are engineered specifically to work with the Stinger Heigh10.
Can I install myself?
While experience and comfort-level vary from person to person, we engineered the RB10JW18B kit to be completely DIY-friendly. All harnesses and modules are plug-and-play with absolutely no soldering or wire splicing required. In fact, typical install time for an experienced user can take as little as 90 minutes! We also include a step-by-step installation manual with drawings and videos to help you with your install.
What If I Need Help Installing?
While we designed the RB10JW18B to be a seamless install, we understand hiccups can happen. Our team of MECP-certified technicians are always available via phone, chat, or email. Visit our tech support page for more details. If you prefer in-person help, we recommend contacting a local, Stinger-approved dealer.
Is the RB10JW18B waterproof?
The RB10JW18B has not yet been waterproof rated or tested. We recommend treating the system with the same care as any factory electronics.
Can I Connect My Phone?
Yes! The RB10JW18B kit retains your factory USB ports. The Heigh10 also features Apple CarPlay and Android Auto via USB and wireless Bluetooth connectivity.
Will I lose any factory features?
Absolutely not! The RB10JW18B kit is designed to retain all factory features and controls, including steering wheel controls. In fact, we even add off-road features not included on lower-level Jeep trims. Any digital gauges and controls already included on your Jeep can be controlled directly from the Heigh10 touchscreen as well as retain their normal function.
Can I use satellite radio?
Yes. In addition to being able to stream music and podcasts from your phone via Apple CarPlay, Android Auto, and Bluetooth, you can also use the on-screen apps which include SiriusXM with Replay. We include a satellite antenna adapter with the kit, however, a SiriusXM tuner will need to be purchased separately. SiriusXM subscription is also required.
How can I add GPS navigation?
Purchase the iGo Navigation Card separately to enhance your driving experience with 1,000’s of built-in waypoints and landscape data at your fingertips. No cellular signal required! Detailed landmarks, lane guidance, and complex road junctions are simple to navigate using the intuitive touch panel control. Map applications on your smartphone can also be used via Apple CarPlay and Android Auto.
Will I lose any of my steering wheel controls?
No. You will retain all steering wheel controls.
Can I get the Off-Road features for other Jeep models or Vehicle makes?
No. Our RB10JW18B kit was engineered specifically for Jeep Wrangler JL and Jeep Gladiator integration years 2018-Up. Other makes and models are coming soon!
Customers also bought
Customer Reviews
4.8 Based on 49 Reviews
Customer Photos
- Reviews
- Questions
Filter Reviews:
MB
03/20/2023
Michael B.
United StatesI recommend this product
Must have upgrade
The install can be a bit intimidating at first, but there are tons of videos and instructions on the internet to help you through the process. Be sure to go through the steps and not breeze through them. It will make your installation so much easier. The radio itself is great. It’s a little slower to boot up than the factory but nothing that’s extremely noticeable. The extra features are a must have over the factory Uconnect. I’ve had several Mopar vehicles over the years with different versions of Uconnect and I’ve had issues at some point with every one of them. I haven’t had the High10 more than a couple weeks, so I can speak for longevity, but I haven’t had a single failure or glitch with the radio since install and updating the unit.
BJ
03/16/2023
Bryce J.
United StatesI recommend this product
Heigh10 for MoonKnight
Love this set-up! Install was fairly easy! Stinger’s install video was extremely useful as well! I did have one small technical issue, but I reached out to tech support who helped the best they could. Apple CarPlay wasn’t working, but once I unplugged the USB on the back of the radio and plugged it back in, it worked just fine! No other issues so that was the only small glitch. Graphics are great! Response is overall good. I’d pick this over the Alpine Restyle any day, not because it’s a bad radio, but because the Heigh10 is flat out the best deal out of the two!!!
AW
03/12/2023
Amber W.
United StatesI recommend this product
Love ittttttt
It's great! So much better than the stock radio. The amount of things it can do is amazing. Very happy!
DA
03/08/2023
Donald A.
United StatesI recommend this product
Loving it so far
The Heigh10 has been everything I expected so far and the instructions were easy to follow. They aren’t lying when saying it’s cramped behind the dash to fit the wires. Truly plug and play though!
