Overview
Description
Cyclone LED under hood kits illuminate your engine bay with very low AMP draw and are easy to mount no matter what vehicle you own. These universal LED kits come with 1 or 2 Cyclone lights, wiring, weatherproof switch, and hardware.
PERFORMANCE OUTPUT AND CLARITY

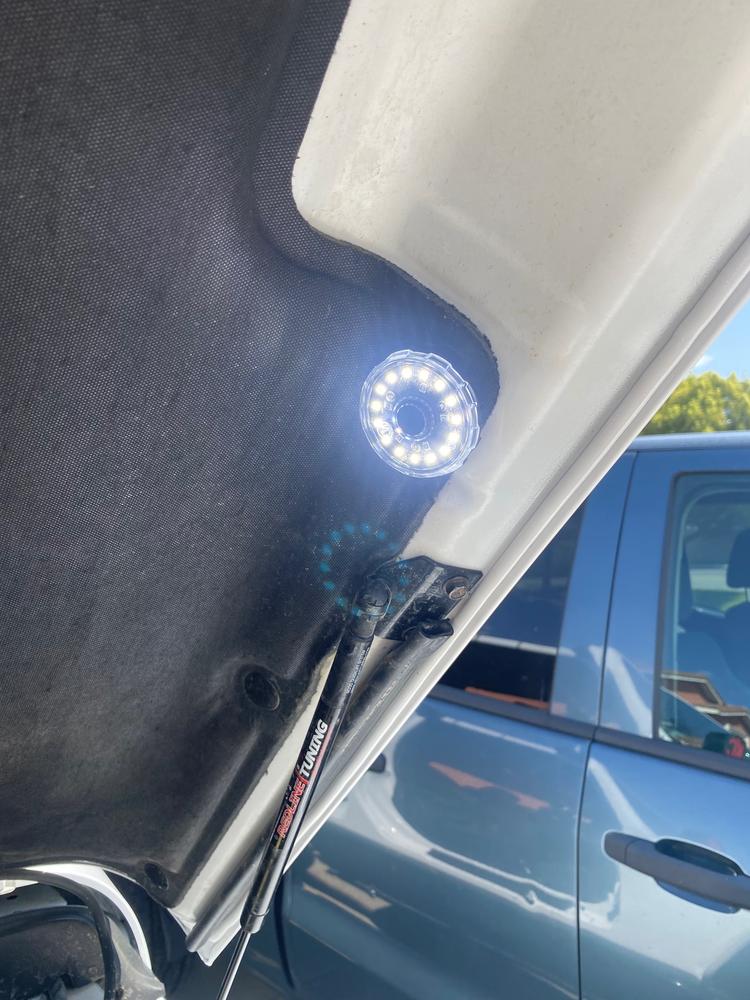

The 5W Cyclone V2 LED light uses a multi-functional compact design delivering 600 lumens of LED output. These extremely bright Cyclone kits are perfect for illuminating your engine bay and any hard-to-see areas under the hood.
UNIVERSAL MOUNTING OPTIONS
Cyclone V2 LED lights feature a die-cast aluminum housing with a centrally located universal mounting hole. These Cyclone kits come with the necessary hardware to attach your Cyclone LED light(s) under the hood of your vehicle with minimal installation time, effort or fuss.
FLOOD BEAM PATTERN
The Cyclone V2 LED comes in a flood beam pattern to provide a large pattern of light by utilizing an infinite vertical and horizontal beam pattern. This delivers ample illumination over short distances.
DESIGNED FOR DURABILITY
Off-road race tested, the Cyclone V2 LED was designed to handle the harshest environments. Featuring an IP68 rated housing, the Cyclone V2 LED kit is resistant to moisture and dust.
Features
-
Universal under hood mounting package included
-
One Cyclone V2 puts out 600 RAW lumens of light for vibrant visibility
- Package includes all necessary wiring
-
IP68 rated waterproof sealing
- Cyclone LED lights feature extremely low amp draw and high output in a compact package
What's In The Box
- 2 x KC Cyclone LED(Clear)
- Wiring Harness with weatherproof DT connector
- Illuminated LED light switch
- Mounting hardware
- Manual
Specifications
GENERAL SPECIFICATIONS
-
Wattage: 5W
-
Voltage: 9V-16V
-
IP Rating: IP68
- Product Dimensions: Diameter - 2.20” x Depth - 0.53"
LIGHT PERFORMANCE (per light at 12V)
- Raw lumens: 600 lm (EA)
MORE DETAILS
- Lumens: 600 lm
- Amp Draw: 0.56 a
- Voltage: 9V-16V
- Total Wattage: 10W
- Wattage Per Light: 5W
- Beam Pattern: Flood
- IP Rating: IP68
- LED Color: White
- Lens Color: Clear
- Product Ships in Multiple Boxes: No
- Product Dimensions: W - 2.20" x D - 0.53"
- Shipping Dimensions - Box 1: 8x2x11
- Shipping Weight (Box 1)" 0.32
- UPC: 084709003555
- SAE/ECE Compliant: No
- DOT Compliant: No
- Prop 65: No
Assembled just for you in the U.S.A. Item ships in 5-7 business days.
Support
Find the answers to many common questions:
*********************************
Warranty Information
Stinger Off-Road products are warrantied against defects in materials One (1) Years from purchase date. Stinger Off-Road will, at its discretion, repair or replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.
Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.
Note: Products purchased from unauthorized dealers are not covered under warranty.
Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warrant
