Product Highlights
Features
HEIGH10 10" Radio Fully Integrated Kit
- Flush Mount: Integrates seamlessly into the dashboard, maximizing space efficiency and providing a factory-like appearance.
- On-Screen Vehicle Information & Gauges: Jeep-specific screens with user customizations and off-road data.
- Plug-and-Play Capability: Easily connects to the existing wiring harness for a hassle-free installation.
- Retain OEM Features: Keeps all the features you love in your Jeep, including HD cameras and steering wheel controls.
- HD Touch Screen and Bluetooth Function: 10” high-definition touch screen with hands-free calling.
- More Detailed Sound Experience: Allows for audio enhancements beyond factory radio capabilities.
- Multiple Camera Inputs: Supports up to four camera inputs.
- Optional Integrated Navigation: Add an iGo navigation SD card for an enhanced driving experience. (Sold Separately)
- Media Features: Android Auto, Apple CarPlay, Bluetooth, SiriusXM-ready, and HDMI.
Under Seat Dual Subwoofer Enclosure
-
Innovative Design: Tailored to fit the Jeep Gladiator perfectly, ensuring hassle-free installation with a specially designed mounting system.
-
Decades of Sound Expertise: Constructed with premium fiberglass, its durability is further enhanced by the application of Stinger Roadkill Armor Coating.
- Enhanced Performance: The ported configuration opens the door to profound low frequencies and the efficient SPL frequency curve ensures a well-balanced and dynamic auditory experience.

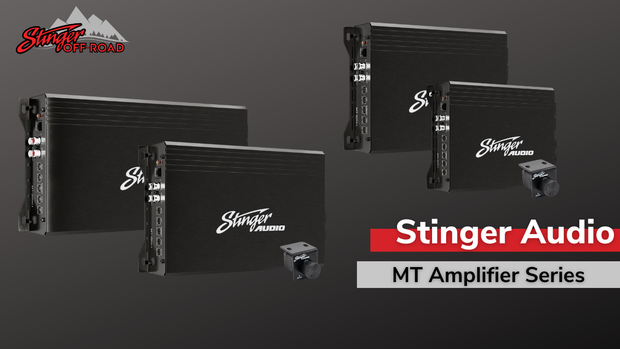

700 Watt Class D Monoblock Car Audio Amplifier | MT-700.1
-
Digital Class-D Mono Block Amplifier: Delivers powerful performance in a compact size, ensuring efficient and high-quality power for your car audio subwoofer system.
-
Small Footprint and Sturdy Design: Precise sound control with our durable metal potentiometer, designed for long-lasting reliability and exceptional tonal adjustments.
-
Robust Unregulated Power Supplies: Advanced pulse width modulator integrated circuits in the power supply circuitry offer superior performance and efficiency.
-
Designed with Advanced HEXFET® Power MOSFET: Featuring reduced on-resistance, faster switching speeds, and unmatched reliability.
- Remote Bass Controller: Enjoy convenient audio control from your driver's seat, allowing you to effortlessly adjust bass levels.
Description
Upgrade your Jeep Gladiator JT's with the ultimate audio bundle kit. This all-inclusive package includes the HEIGH10 10" Radio Kit, the Under Seat 8" Subwoofer Enclosure, and the 700 Watt Amplifier. Experience the next level of infotainment with the Stinger fully integrated radio kit, featuring an HD 10" touchscreen head unit, a vehicle-specific interface to retain your OEM features, and the added off-road mode for an enhanced driving experience. Revolutionize your audio with the Under Seat Dual Custom Fit Enclosure, seamlessly fitting in your Gladiator and housing two powerful 8-inch subwoofers for an immersive sound experience. For unparalleled bass and tonal clarity, the Stinger Audio 700-Watt Amplifier delivers mind-blowing power at 1 ohm, ensuring optimal performance with every beat. With the 4GA 1200 Watt Wiring Kit and hardware included, installation has never been easier. Elevate your Jeep Gladiator JT with Stinger's bundle kit and enjoy an exceptional audio and infotainment experience.
Complete Wiring Kit is included.
What's In The Box
- 10-inch touch screen display and infotainment system
- RadioPro Interface for Jeep Gladiator JT (2018-2022)
- Jeep Gladiator JT radio dash kit (SRK-JW18EH)
- Complete Plug-n-Play installation, necessary retention harnesses, & USB cables
- SiriusXM Adaptor (retain factory-installed SiriusXM antenna)
- Tuner sold separately & not on Stinger Off-Road: SXV300V1
- HEIGH10 Installation Guide
- HEIGH10 Installation Guide (Version 2)
- HEIGH10 User Guide
- 8" Dual Subwoofers with Loaded Enclosure (Comes Assembled)
- Mounting Hardware
- Enclosure Installation Guide
- 700 Watt Class D Car Monoblock Amplifier
- Remote bass control and cable
- Amplifier User Guide
- 4GA 1200 Watt Complete Wiring Kit
Specifications
HEIGH10 10" Radio Fully Integrated Kit Specifications
| Model Number | RB10JW18B |
| Mounting Design | Single Din |
| Recording Resolution | 1024 x 600 |
| Screen Size | 10" |
| Manufacturer's Warranty | 1 year |
| Operating Voltage | 9.0VDC to 18VDC |
| Grounding system | Negative Ground |
| Max Current Consumption | 10A fused |
DIMENSIONS
| Radio Module | 178 mm x100 mm x 116 mm (W x H x D) |
| Display | 247.2 mm x 180.6 mm x 48.5 mm (W x H x D) |
DISPLAY
| Diagonal | 10 inch |
| Aspect Ratio | 16:9 |
| Resolution | 1024 x 600 |
| Pixels | 1,843,200 |
| Active Area | 222.72 (W) x 125.28 (H) mm |
| Operating Temperature | (C) -20° to 70° |
AUDIO
| Load Impedance | 4Ω nominal / 2Ω allowable |
| Continuous Power Output | 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V |
| Audio output level (max) | 4.0V pre-out |
| EQ | (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz |
| Gain | ±12dB (2dB/step) |
| HPF | 25Hz/40Hz/63Hz/80Hz/100Hz/ 160Hz/250Hz |
| Slope | 6dB, 12dB, 18dB |
| Subwoofer Preout LPF | 25Hz/40Hz/63Hz/80Hz/100Hz/ 160Hz/250Hz |
| Slope | 6dB, 12dB, 18dB |
| Gain | -14dB to 7dB (1dB/step) |
| Phase | 0 or 180 |
| Speaker Level | ±9dB (1dB/step) |
| Time Alignment | 0 to 133 step (inch/ms) |
FM TUNER
| 87.9MHz to 107.9MHz |
| Usable sensitive 0dB (mono S/N: 30dB) |
| SNR: 65dB |
AM TUNER
| 530KHz to 1710KHz |
| Usable sensitive 0dB (mono S/N:20dB) |
| SNR 58dB |
USB
| Type | USB 2.0 |
| Max Current Supply | 1.5A |
| USB Class | MSC (Mass Storage Class), and MTP (Media Transfer Protocol) |
| File System | FAT32, NTFS |
BLUETOOTH
| V4.2 dual |
| 4dBm Class2 |
| 2.4GHz to 2.48GHz |
CAMERA(S) VIDEO INPUTS
| NTSC OR PAL video formats |
HDMI INPUT
| Supported HDMI Resolutions | 640*480p |
| 720*480p | |
| 1280*720p | |
| 1920*1080i | |
| 1920*1080p |
TOSLINK (OPTICAL)
| Output | 48khz Variable |
BACKGROUND IMAGE (USER)
| File Format | JPG / PNG |
| Resolution | 1024 x 600 |
| File size is not limited |
AUDIO/VIDEO FORMATS
| MPEG-1 Audio Layer-3 (.mp3) |
| FLAC (.flac) |
| MPEG-2 Advanced Audio (.aac) |
| MPEG-4 Audio (.m4a) |
| Windows Audio (.wav) |
| OGG Audio (.ogg) |
VIDEO
| QuickTime (.mov) |
| MPEG-4 Video (.mp4) |
| Microsoft AVI (.avi) |
| MPG Video (.mpg) |
| MPEG Video 1/2 (.mpeg) |
| VOB DVD (.vob) |
| Flash Video (.flv) |
| JPEG (.jpg) |
| CompuServe GIF (.gif) |
| PNG (.png) |
| JPEG (.jpeg) |
| Bitmap(.bmp) |
Subwoofer Specifications
| Model Number | TXJTD8 |
| Speaker Model | SPK-S4 (x2) |
| Subwoofer Size | Dual 8” |
| Voice Coil | Single 4 ohm |
| DC Resistance (Re) | 2 ohm |
| Sensitivity 1W/M (SPL) | 88 dB |
| Frequency Response | 20Hz - 250Hz |
| RMS Power | Min: 400 watts / Ideal: 700 watts |
| Peak Power | 1,000 watts |
| Speaker Displacement | 0.10 cu ft / 2.88 Ltr |
| Speaker Weight | 11.75 lbs |
Enclosure Specifications
| Internal Tuning | 39 Hz |
| Subsonic Filter Setting | 31 Hz |
| Enclosure Weight | 20.5 lbs |
| Total Weight | 43 lbs |
| Height | 7.5in / 19.05cm |
| Width | 48in / 121.92cm |
| Depth | 10.5in / 26.67cm |
Monoblock Class D Amplifier Specifications
|
Number of Channels: |
1 |
|
1Ω: |
700 Watts x 1 Channel |
|
2Ω: |
500 Watts x 1 Channel |
|
4Ω |
300 Watts x 1 Channel |
|
Bridged RMS Rating / 2Ω Minimum |
1200W x 1 |
|
Signal to Noise (@ CEA Standard) |
-93db |
|
Input Sensitivity 0.2-6v |
0.2-6v |
|
Gain |
0.2v - 6v |
|
Crossover Control, Linkwitz-Riley |
SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct |
|
Bass-Boost Frequency Range |
30-80 Hz |
|
Bass-Boost Q |
0-12dB |
|
Frequency Response (+- 1dB) |
10Hz - 180Hz |
|
Efficiency (Average) |
85% |
|
Topology Class: |
Class D |
|
Remote Bass Control |
Included |
|
Operating Voltage |
9V to 16V |
|
Power Terminals: |
4 Gauge |
|
Speaker Terminal: |
8 Gauge |
|
Recommended External Fusing |
80A |
4GA Wiring Kit Specifications
| Model Number | SS1200XS |
| Size | 4 GA |
| Power | 1200 Watt |
| Translucent Blue Power Wire | 17FT |
| Translucent Silver Ground Wire | 3FT |
| Translucent Blue Twisted Pair RCA Interconnect |
17FT |
| Blue Remote Turn-on Wire | 16FT |
|
Translucent Speaker Wire |
20FT |
Vehicle Fitment Guide
Year(s) |
Make |
Model |
Trim Level |
|---|---|---|---|
| 2020-2023 | JEEP | GLADIATOR | ALL TRIM LEVELS |
New Firmware
Click Here To Download HEIGH10 (UN1810) Firmware
For All Installations NOT Using PAC Vehicle-Specific Integration Kit
Click Here To Download HEIGH10 (UN1810) Firmware
For Units Installed Using PAC SRK-JW18EH, SRK-CHR15H, SRK-RAM13H, SR-JK11H, SR-GM14H, SR-TAC15H, SR-TUN14H
Click Here To Download HEIGH10 (UN1810) Firmware
For Units Installed Using PAC SRK-JK11H And CH1AKIT Integration Kits
Release Notes:
- Adds AHD Camera compatibility (UN1810 HW REV 2.1.6.2 and higher)
- Adds onscreen RGB Light Control for Stinger ENLIGHT10 products.
- Adds compatibility for new hardware revisions.*
*Firmware is backwards compatible for older hardware versions.
Support Documents for Download:
How to verify AHD Camera compatibility on HEIGH10 (UN1810)
How to activate RGB Light Control on HEIGH10 (UN1810)
CLICK HERE FOR A VIDEO WALK-THROUGH ON HOW TO UPDATE YOUR HEIGH10 FIRMWARE
CLICK FOR INSTRUCTIONS ON HOW TO UPDATE YOUR HEIGH10'S FIRMWARE
