Jeep Wrangler JK (2007-2018) HEIGH10 10" Radio Kit






SKU: STH10JKB
Bundle & Save Now!
Features
-
Floating Mount: This design enhances visibility, and ergonomics, and adds a sleek and modern aesthetic to the vehicle's interior. The elevated position of the display improves visibility and reduces distractions for safer driving. The adjustable angle and height offer customizable viewing and easy access to controls.
- Gain Total Access to your Smartphone: Compatible with Apple CarPlay and Android Auto (wired connection) to make it possible to access map navigation, phone contacts, notifications, music, and much more.
-
HD Touch Screen and Bluetooth Function: 10-inch high-definition capacitive touch screen supports Bluetooth hands-free calling and audio streaming, which will give you a fantastic experience.
-
Experience Versatile and More Detailed Sound Experience: Allows more audio enhancements than any factory radio.
-
Help Reduce Risk with Multiple Camera Inputs: The HEIGH10 kit allows up to four camera inputs via camera mode display.
-
Add Optional Integrated Navigation: Add on an iGo navigation SD card (sold separately) to enhance any driving experience by having 1000’s of built-in waypoints and landscape data at your fingertips. Please be advised that network-free GPS navigation will not function without the SD card.
-
Includes Everything you Need for Installation: Beautiful 10-inch touch screen, interface that retains OEM steering wheel controls, OEM antenna adapter, custom-fit dash kit, dual USB ports, and an installation guide.
- Media Features: Android Auto, Apple CarPlay, hands-free Bluetooth, SiriusXM-ready, and HDMI Capability. And with safety features like 4 camera inputs and integrated GPS (microSD card sold separately).
Description

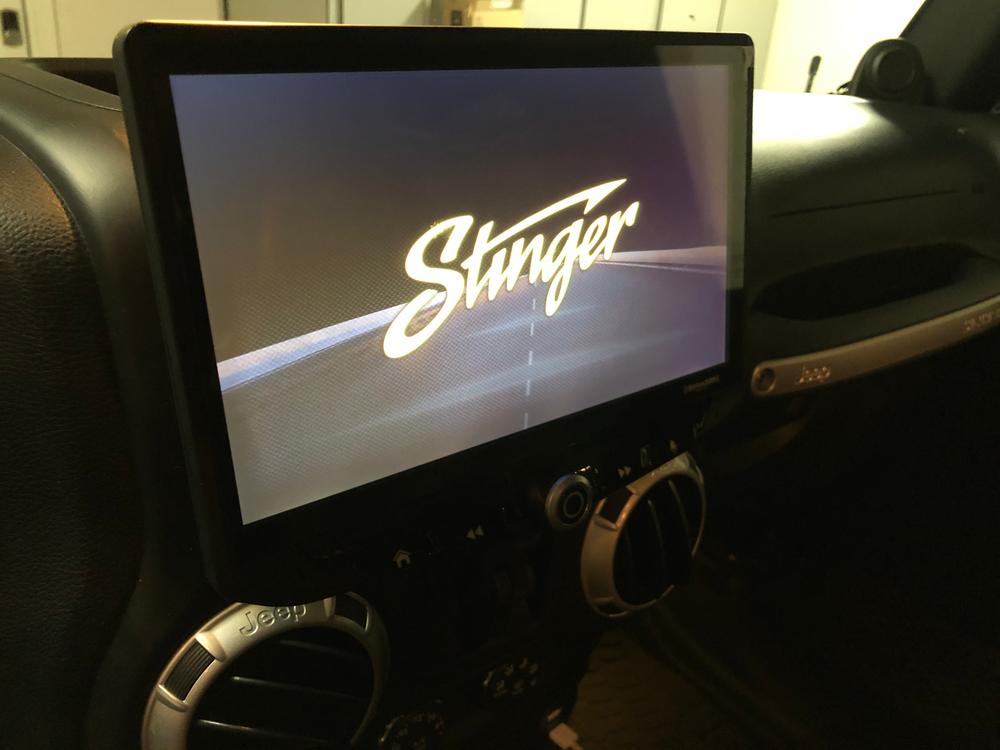

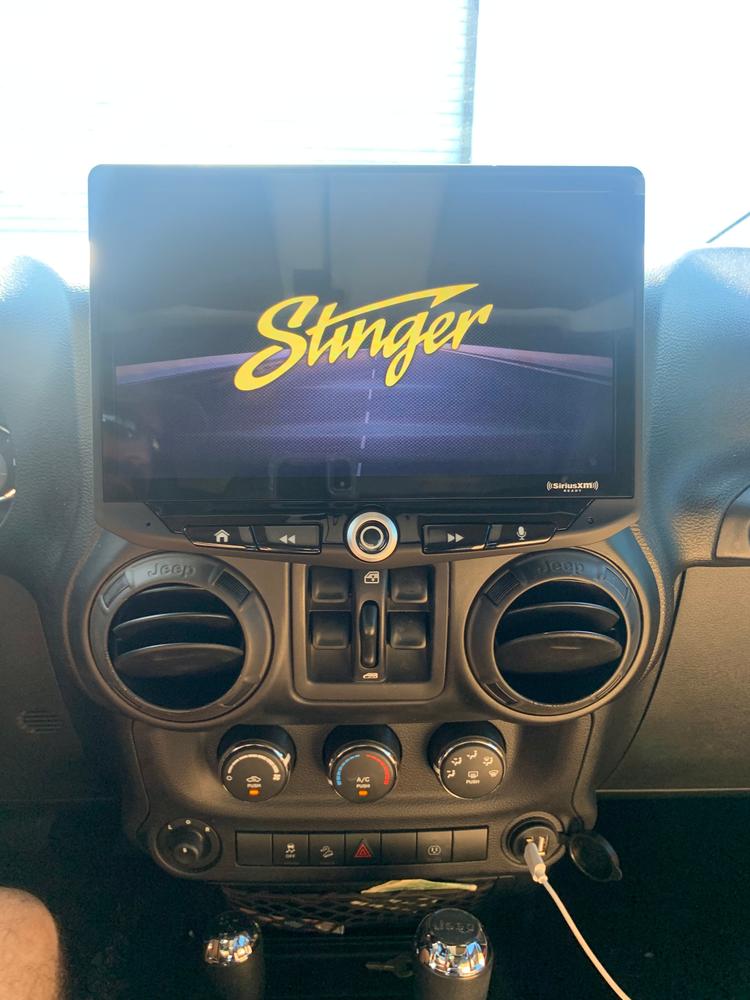

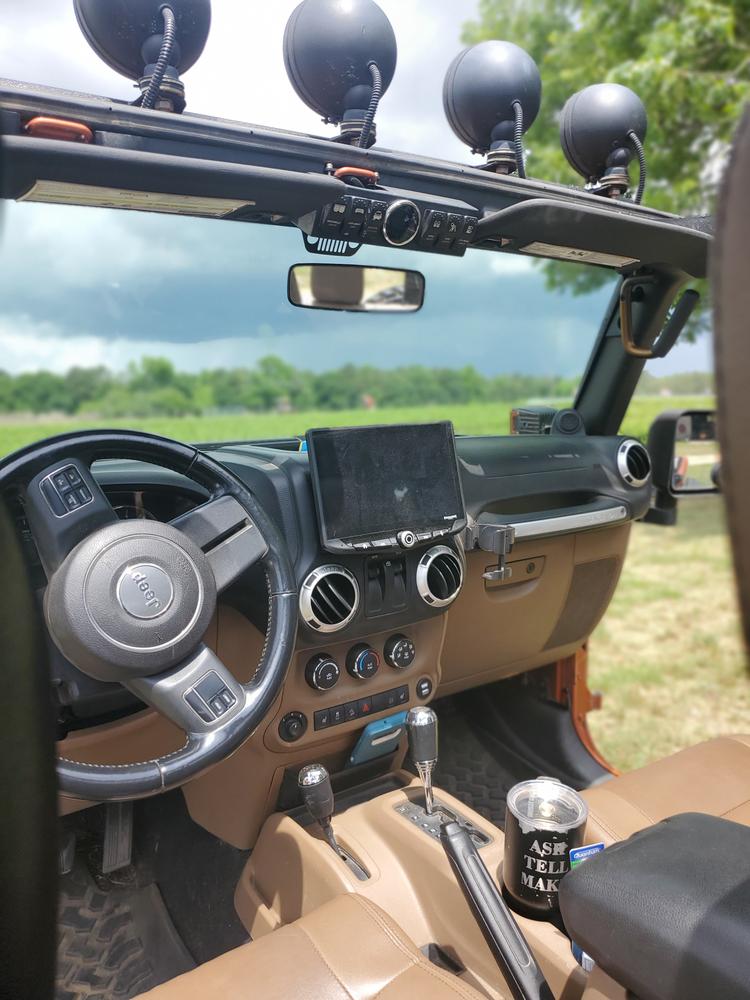

Transform your Jeep Wrangler JK with the HEIGH10 radio kit! This all-inclusive dash & multimedia upgrade will take your infotainment to the next level. With an HD 10" touchscreen head unit and the vehicle-specific interface to keep your OEM features, everything is included to make your installation super simple and easy!
- 10-inch touch screen display and infotainment system
- RadioPro Interface for Jeep Wrangler JK (2007-2010)
- Jeep Wrangler JK radio dash kit (CDK642)
- Antenna adapters for satellite and AM/FM radio
- SiriusXM Adaptor (retain factory-installed SiriusXM antenna)
- Tuner sold separately & not on Stinger Off-Road: SXV300V1
- Stinger dual USB extension
- Installation Guide
- User Guide
GENERAL
Model Number | STH10JKB |
Plug-and-Play | No |
Mounting Design | Single Din |
Recording Resolution | 1024 x 600 |
Screen Size | 10" |
Manufacturer's Warranty | 1 year |
Operating Voltage | 9.0VDC to 18VDC |
Grounding system | Negative Ground |
Max Current Consumption | 10A fused |
DIMENSIONS
Radio Module | 178 mm x100 mm x 116 mm (W x H x D) |
Display | 247.2 mm x 180.6 mm x 48.5 mm (W x H x D) |
DISPLAY
Diagonal | 10 inch |
Aspect Ratio | 16:9 |
Resolution | 1024 x 600 |
Pixels | 1,843,200 |
Active Area | 222.72 (W) x 125.28 (H) mm |
Operating Temperature | (C) -20° to 70° |
AUDIO
Load Impedance | 4Ω nominal / 2Ω allowable |
Continuous Power Output | 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V |
Audio output level (max) | 4.0V pre-out |
EQ | (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz |
Gain | ±12dB (2dB/step) |
HPF | 25Hz/40Hz/63Hz/80Hz/100Hz/ 160Hz/250Hz |
Slope | 6dB, 12dB, 18dB |
Subwoofer Preout LPF | 25Hz/40Hz/63Hz/80Hz/100Hz/ 160Hz/250Hz |
Slope | 6dB, 12dB, 18dB |
Gain | -14dB to 7dB (1dB/step) |
Phase | 0 or 180 |
Speaker Level | ±9dB (1dB/step) |
Time Alignment | 0 to 133 step (inch/ms) |
FM TUNER
87.9MHz to 107.9MHz |
Usable sensitive 0dB (mono S/N: 30dB) |
SNR: 65dB |
AM TUNER
530KHz to 1710KHz |
Usable sensitive 0dB (mono S/N:20dB) |
SNR 58dB |
USB
Type | USB 2.0 |
Max Current Supply | 1.5A |
USB Class | MSC (Mass Storage Class), and MTP (Media Transfer Protocol) |
File System | FAT32, NTFS |
BLUETOOTH
V4.2 dual |
4dBm Class2 |
2.4GHz to 2.48GHz |
CAMERA(S) VIDEO INPUTS
NTSC OR PAL video formats |
HDMI INPUT
Supported HDMI Resolutions | 640*480p |
720*480p | |
1280*720p | |
1920*1080i | |
1920*1080p |
TOSLINK (OPTICAL)
Output | 48khz Variable |
BACKGROUND IMAGE (USER)
File Format | JPG / PNG |
Resolution | 1024 x 600 |
File size is not limited |
AUDIO/VIDEO FORMATS
MPEG-1 Audio Layer-3 (.mp3) |
FLAC (.flac) |
MPEG-2 Advanced Audio (.aac) |
MPEG-4 Audio (.m4a) |
Windows Audio (.wav) |
OGG Audio (.ogg) |
VIDEO
QuickTime (.mov) |
MPEG-4 Video (.mp4) |
Microsoft AVI (.avi) |
MPG Video (.mpg) |
MPEG Video 1/2 (.mpeg) |
VOB DVD (.vob) |
Flash Video (.flv) |
JPEG (.jpg) |
CompuServe GIF (.gif) |
PNG (.png) |
JPEG (.jpeg) |
Bitmap(.bmp) |
Year(s) |
Make |
Model |
Trim Level |
---|---|---|---|
2011-2014 | CHRYSLER | 200 | ALL TRIM LEVELS |
2008-2010 | CHRYSLER | 300 | ALL TRIM LEVELS |
2008-2009 | CHRYSLER | ASPEN | ALL TRIM LEVELS |
2007-2010 | CHRYSLER | SEBRING | ALL TRIM LEVELS |
2008-2016 | CHRYSLER | TOWN & COUNTRY | ALL TRIM LEVELS |
2007-2014 | DODGE | AVENGER | ALL TRIM LEVELS |
2009-2012 | DODGE | CALIBER | ALL TRIM LEVELS |
2008-2014 | DODGE | CHALLENGER | ALL TRIM LEVELS |
2008-2010 | DODGE | CHARGER | ALL TRIM LEVELS |
2008-2009 | DODGE | DURANGO | ALL TRIM LEVELS |
2008-2020 | DODGE | GRAND CARAVAN | ALL TRIM LEVELS |
2009-2010 | DODGE | JOURNEY | ALL TRIM LEVELS |
2008 | DODGE | MAGNUM | ALL TRIM LEVELS |
2007-2011 | DODGE | NITRO | ALL TRIM LEVELS |
2009-2012 | DODGE | RAM TRUCK | ALL TRIM LEVELS |
2008-2010 | JEEP | COMMANDER | ALL TRIM LEVELS |
2009-2016 | JEEP | COMPASS | ALL TRIM LEVELS |
2008-2010 | JEEP | GRAND CHEROKEE | ALL TRIM LEVELS |
2008-2013 | JEEP | LIBERTY | ALL TRIM LEVELS |
2009-2017 | JEEP | PATRIOT | ALL TRIM LEVELS |
2007-2017 | JEEP | WRANGLER | ALL TRIM LEVELS |
2018 | JEEP | WRANGLER | JK |
2007-2017 | JEEP | WRANGLER UNLIMITED | ALL TRIM LEVELS |
2018 | JEEP | WRANGLER UNLIMITED | JK |
2008-2009 | MITSUBISHI | RAIDER | ALL TRIM LEVELS |
2010-2012 | RAM | RAM TRUCK | ALL TRIM LEVELS |
2009-2013 | VOLKSWAGEN | ROUTAN | ALL TRIM LEVELS |
Click Here To Download HEIGH10 (UN1810) Firmware
For All Installations NOT Using PAC Vehicle-Specific Integration Kit
Click Here To Download HEIGH10 (UN1810) Firmware
For Units Installed Using PAC SRK-JW18EH, SRK-CHR15H, SRK-RAM13H, SR-JK11H, SR-GM14H, SR-TAC15H, SR-TUN14H
Click Here To Download HEIGH10 (UN1810) Firmware
For Units Installed Using PAC SRK-JK11H And CH1AKIT Integration Kits
Release Notes:
- Adds AHD Camera compatibility (UN1810 HW REV 2.1.6.2 and higher)
- Adds onscreen RGB Light Control for Stinger ENLIGHT10 products.
- Adds compatibility for new hardware revisions.*
*Firmware is backwards compatible for older hardware versions.
Support Documents for Download:
How to verify AHD Camera compatibility on HEIGH10 (UN1810)
How to activate RGB Light Control on HEIGH10 (UN1810)
CLICK HERE FOR A VIDEO WALK-THROUGH ON HOW TO UPDATE YOUR HEIGH10 FIRMWARE
CLICK FOR INSTRUCTIONS ON HOW TO UPDATE YOUR HEIGH10'S FIRMWARE
