Jeep Wrangler JK (2011-2018) HEIGH10 10" Radio Kit






SKU: RB10JK11B
Bundle & Save Now
Features
-
Flush Mount: This head unit seamlessly integrates into the vehicle's dashboard, creating a clean and polished look. This design maximizes space efficiency, enhances durability, and provides a factory-like appearance.
-
Gain Total Access to your Smartphone: Compatible with Apple CarPlay and Android Auto (wired connection) to make it possible to access map navigation, phone contacts, emails, notifications, music, and much more.
-
Plug-and-Play Capability: Users can easily connect the Stinger HEIGH10 Radio Kit to their vehicle's existing wiring harness without the need for any additional modifications or complex wiring procedures. This ensures a hassle-free installation experience, saving time and effort.
-
HD Touch Screen and Bluetooth Function: 10” high-definition capacitive touch screen supports Bluetooth hands-free calling and auto streaming will give you a fantastic experience.
-
Experience Versatile and More Detailed Sound Experience: Allows for more audio enhancements than any factory radio.
-
Help Reduce Risk with Multiple Camera Inputs: The HEIGH10 kit allows for up to four camera inputs via camera mode display.
-
Add Optional Integrated Navigation: Add on an iGo navigation SD card (sold separately) to enhance any driving experience by having 1000’s of built-in waypoints as well as landscape data at your fingertips. Please be advised that network-free GPS navigation will not function without the SD card.
-
Includes Everything you Need for Installation: Beautiful 10-inch touch screen, interface that retains OEM steering wheel controls, OEM antenna adapter, custom-fit dash kit, dual USB ports, and an installation guide.
- Media Features: Android Auto, Apple CarPlay, hands-free Bluetooth, SiriusXM-ready, and HDMI. And with safety features like 4 camera inputs and integrated GPS (microSD card sold separately).
Description

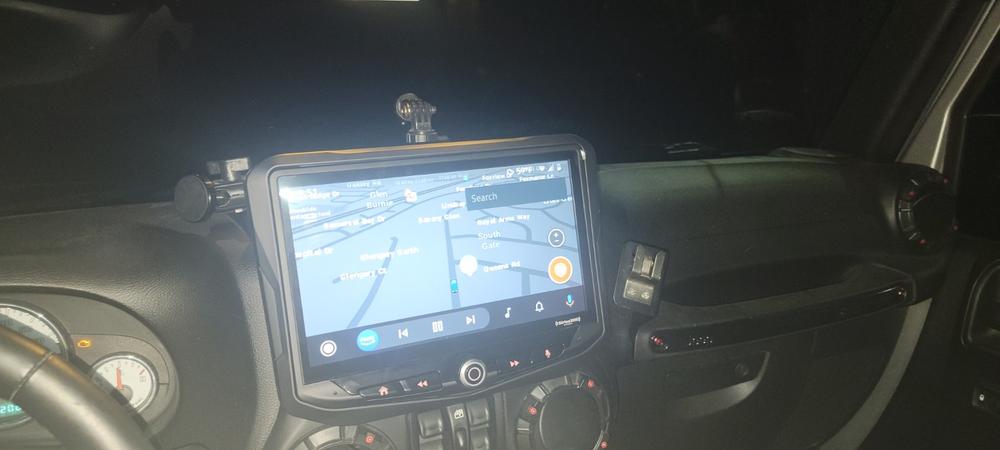

Upgrade your Jeep Wrangler JK‘s factory radio to the Stinger HEIGH10 Plug-n-Play kit! This all-inclusive dash & multimedia package will take your infotainment to the next level. You will experience a new life of luxury with an HD 10" touchscreen head unit, hands-free Bluetooth, and Apple Carplay or Android Auto. This Stinger kit comes with a vehicle-specific interface to keep your OEM features and includes everything you need for an easy installation!
- 10-inch touchscreen display and infotainment system
- RadioPro Interface for Jeep Wrangler JK (2011-2018)
- Jeep Wrangler JK radio dash kit (SR-JK11H)
- Antenna adapters for satellite and AM/FM radio
- SiriusXM Adaptor (retain factory-installed SiriusXM antenna)
- Tuner sold separately & not on Stinger Off-Road: SXV300V1
- Hardware kits
- Stinger dual USB extension
- Installation Guide
- User Guide
GENERAL
Model Number | RB10JK11B |
Plug-and-Play | Yes |
Mounting Design | Single Din |
Recording Resolution | 1024 x 600 |
Screen Size | 10" |
Manufacturer's Warranty | 1 year |
Operating Voltage | 9.0VDC to 18VDC |
Grounding system | Negative Ground |
Max Current Consumption | 10A fused |
DIMENSIONS
Radio Module | 178 mm x100 mm x 116 mm (W x H x D) |
Display | 247.2 mm x 180.6 mm x 48.5 mm (W x H x D) |
DISPLAY
Diagonal | 10 inch |
Aspect Ratio | 16:9 |
Resolution | 1024 x 600 |
Pixels | 1,843,200 |
Active Area | 222.72 (W) x 125.28 (H) mm |
Operating Temperature | (C) -20° to 70° |
AUDIO
Load Impedance | 4Ω nominal / 2Ω allowable |
Continuous Power Output | 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V |
Audio output level (max) | 4.0V pre-out |
EQ | (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz |
Gain | ±12dB (2dB/step) |
HPF | 25Hz/40Hz/63Hz/80Hz/100Hz/ 160Hz/250Hz |
Slope | 6dB, 12dB, 18dB |
Subwoofer Preout LPF | 25Hz/40Hz/63Hz/80Hz/100Hz/ 160Hz/250Hz |
Slope | 6dB, 12dB, 18dB |
Gain | -14dB to 7dB (1dB/step) |
Phase | 0 or 180 |
Speaker Level | ±9dB (1dB/step) |
Time Alignment | 0 to 133 step (inch/ms) |
FM TUNER
87.9MHz to 107.9MHz |
Usable sensitive 0dB (mono S/N: 30dB) |
SNR: 65dB |
AM TUNER
530KHz to 1710KHz |
Usable sensitive 0dB (mono S/N:20dB) |
SNR 58dB |
USB
Type | USB 2.0 |
Max Current Supply | 1.5A |
USB Class | MSC (Mass Storage Class), and MTP (Media Transfer Protocol) |
File System | FAT32, NTFS |
BLUETOOTH
V4.2 dual |
4dBm Class2 |
2.4GHz to 2.48GHz |
CAMERA(S) VIDEO INPUTS
NTSC OR PAL video formats |
HDMI INPUT
Supported HDMI Resolutions | 640*480p |
720*480p | |
1280*720p | |
1920*1080i | |
1920*1080p |
TOSLINK (OPTICAL)
Output | 48khz Variable |
BACKGROUND IMAGE (USER)
File Format | JPG / PNG |
Resolution | 1024 x 600 |
File size is not limited |
AUDIO/VIDEO FORMATS
MPEG-1 Audio Layer-3 (.mp3) |
FLAC (.flac) |
MPEG-2 Advanced Audio (.aac) |
MPEG-4 Audio (.m4a) |
Windows Audio (.wav) |
OGG Audio (.ogg) |
VIDEO
QuickTime (.mov) |
MPEG-4 Video (.mp4) |
Microsoft AVI (.avi) |
MPG Video (.mpg) |
MPEG Video 1/2 (.mpeg) |
VOB DVD (.vob) |
Flash Video (.flv) |
JPEG (.jpg) |
CompuServe GIF (.gif) |
PNG (.png) |
JPEG (.jpeg) |
Bitmap(.bmp) |
Year(s) |
Make |
Model |
Trim Level |
---|---|---|---|
2011-2017 | JEEP | WRANGLER | ALL TRIM LEVELS |
2018 | JEEP | WRANGLER | JK |
2011-2017 | JEEP | WRANGLER UNLIMITED | ALL TRIM LEVELS |
2018 | JEEP | WRANGLER UNLIMITED | JK |
Click Here To Download HEIGH10 (UN1810) Firmware
For All Installations NOT Using PAC Vehicle-Specific Integration Kit
Click Here To Download HEIGH10 (UN1810) Firmware
For Units Installed Using PAC SRK-JW18EH, SRK-CHR15H, SRK-RAM13H, SR-JK11H, SR-GM14H, SR-TAC15H, SR-TUN14H
Click Here To Download HEIGH10 (UN1810) Firmware
For Units Installed Using PAC SRK-JK11H And CH1AKIT Integration Kits
Release Notes:
- Adds AHD Camera compatibility (UN1810 HW REV 2.1.6.2 and higher)
- Adds onscreen RGB Light Control for Stinger ENLIGHT10 products.
- Adds compatibility for new hardware revisions.*
*Firmware is backwards compatible for older hardware versions.
