Overview
Description

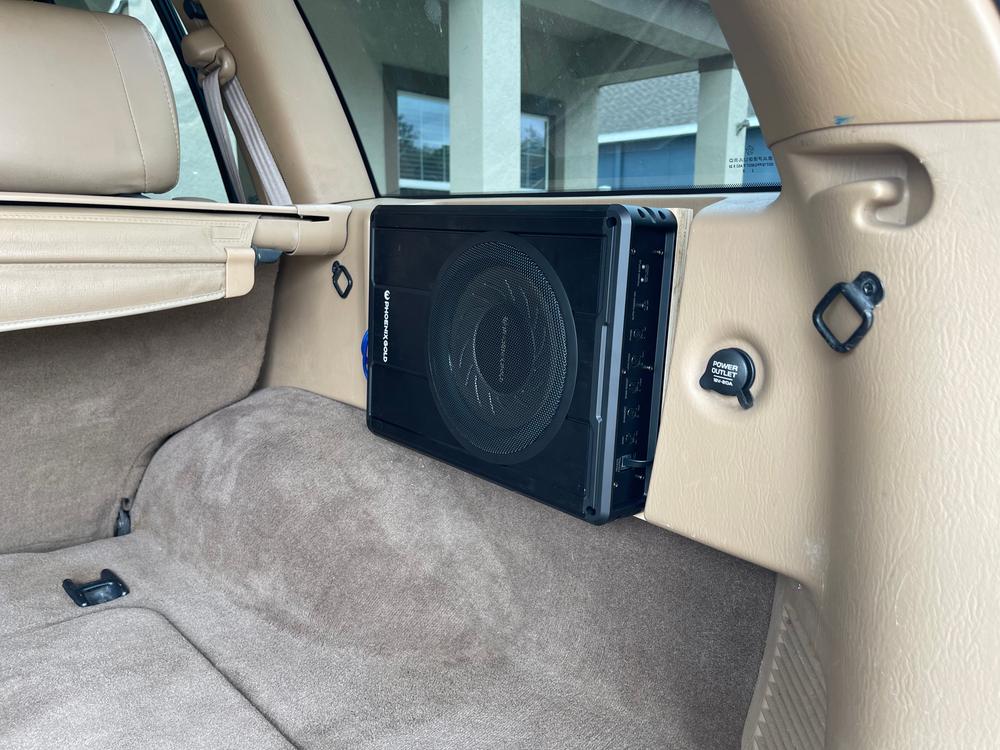

Slim enough to fit under the seat or any other hideaway location, this 8" Slim Active Bass Enclosure offers a quick and easy way to add a high-powered subwoofer solution to your audio system.
The integrated amplifier in the subwoofer features both subsonic and low pass crossovers and control for adjusting the input sensitivity from 0.2V to 6V.
Both high level (speaker level) and low level (RCA type) inputs are present, making this a universal solution for use with any head unit or other input source.
For further flexibility, a variable bass boost control has been included allowing you to control the subwoofer from the front seat.
Features
- MOSFET PWM (Pulse Width Modulated) Power Supply
- Thermal, overload, and speaker short protection
- Soft turn-on circuit u Remote turn-on/turn-off circuit
- Variable input gain control
- Variable low and subsonic crossovers
- Variable bass boost (0 to 18dB)
- Variable phase (0 to 180 degrees)
- RCA low level & high-level inputs
- Auto Power On: ON/OFF
- LED power & protection indicators
- Remote subwoofer level control
What's In The Box
- Amplified subwoofer
- Remote subwoofer level control
- Remote subwoofer control cable
- High level input harness/wire
- Mounting hardware
- Install Guide
Specifications
| Model Number | Z8150V2 |
| RMS Power | 150W RMS |
| THD | <0.4% @ 100Hz |
| Signal-to-Noise Ratio | >90dB |
| Frequency Response | 20Hz-150Hz |
| Input Sensitivity, Low Level | 0.5V |
| Input Sensitivity, High Level | 110mV |
| Low Pass Filter | 50Hz-150Hz |
| Bass Boost | 0-18dB @ 45Hz |
| Subsonic Filter | 20Hz-50Hz |
| Variable Phase | 0-180 Degrees |
| Fuse Rating | 20A |
| Subwoofer | 8” - 2Ohm |
| Dimensions (L x W H) mm | 354 x 250 x 68 |
