Toyota Tacoma (2016-2019) 6.8" Double DIN Touch Screen Radio Kit
SKU: STG-TOYK9714
Product Highlights
Features
-

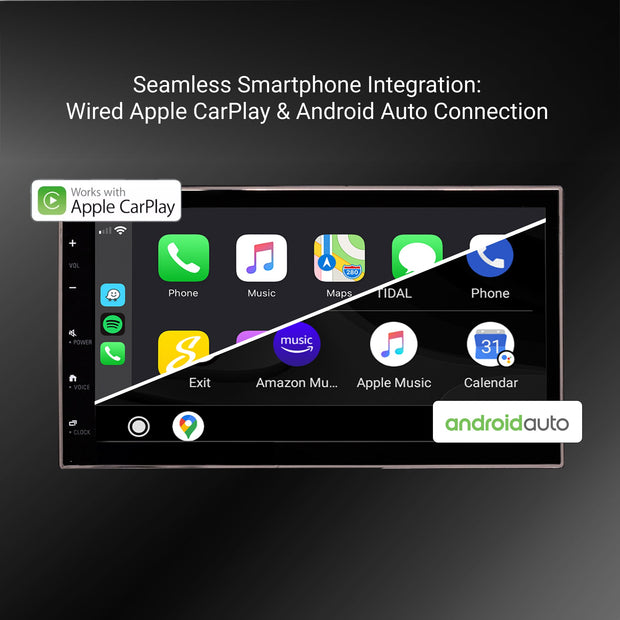

Gain Total Access to your Smartphone: Compatible with Apple CarPlay and Android Auto (wired connection), to make it possible to access map navigation, phone contacts, notifications, music, and much more.
-
HD Touch Screen and Bluetooth Function: 6.8” capacitive touch screen supports Bluetooth handsfree calling and auto streaming will give you a fantastic experience.
-
Experience Versatile and More Detailed Sound Experience: Allows for more audio enhancements than any factory radio.
-
Help Reduce Risk Rear Camera Input: The 6.8" radio kit allows for an aftermarket rearview camera input and features adjustable guidelines.
-
Includes Everything you Need for Installation: Beautiful 6.8 inch touch screen, a vehicle-specific harness, and a custom-fit dash kit.
- Media Features: Android Auto, Apple CarPlay, hands-free Bluetooth, and customizable backgrounds/backlighting.
Description
If you're a Toyota Tacoma owner, there's never been a better time to upgrade your factory radio to the 6.8" Double DIN radio kit. This kit boasts a capacitive touch screen and delivers a consistent and responsive experience while allowing you to retain your vehicle's steering wheel controls.
With this aftermarket head unit, you'll get everything you need for an easy installation, including a factory-matched radio mounting dash kit. And if you would like to use Apple CarPlay or Android Auto (wired connection) for navigation, phone calls, emails, music, and more, this kit is fully compatible with both wired connections!
The 6.8" capacitive touch screen also supports Bluetooth hands-free calling and auto streaming, so you can answer calls and messages without taking your eyes off the road. Additionally, this kit features rearview camera inputs with adjustable guidelines to make parking and reversing a breeze.
The 6.8" Double DIN radio kit has been designed to be user-friendly. That's why we've included everything you need to make installation a breeze, including a custom-fit dash kit, USB input extension, and an installation guide to ensure you get the most out of your investment.
What's in the Box
- Multimedia 6.8-inch touch screen radio
- RadioPro Interface for Toyota Tacoma (RP4.2-TY11)
- Toyota Tacoma radio dash kit (TOYK9714)
- Antenna adapters for AM/FM radio
- Installation harness
- Hardware kit
- Installation Guide
-
User Guide
Specifications
GENERAL
| Model Number | STG-TOYK9714 |
| Mounting Design | Double Din |
| Display Resolution | 1024 x 600 |
| Screen Size | 6.8" |
| Manufacturer's Warranty | 1 year |
| Operating Voltage | 14.vVDC(10.5-16V) |
| Operational Temperature | -20°C-+80°C |
| Max Current Consumption | 15A |
VIDEO
| Color System of External Video Input |
NTSC/PAL |
| External Video Input |
1 Vp-p/75Ω |
| Supporting Formats |
MPEG 1 (.mpg,mpeg), 720x480(30ps) |
AUDIO
| Maximum Power | 50Wx4 |
| Continuous Power Output | 22Wx4 |
| Preout Level (V) | 4V/10kΩ |
| Preout Impedance | ≤1.3kΩ |
| Speaker Impedance | 4-8Ω |
| Output Frequency Band | 20-20000Hz |
| Audio Formats |
MP3/WMA Bit rate: 16-320 Kbps, VBR WMA Version V9 or earlier ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 |
RADIO
| Frequency FM Range | 87.5MHz to 107.9MHz |
| Frequency AM Range | 530MHz to 1710MHz |
| Usable Sensitivity |
13.2 uV (FM) |
BLUETOOTH
| Communication System | Bluetooth Ver 4.1 |
| Output | Bluetooth Standard Power Class 2 |
| Maximum Communication Range | Approx. 10meters |
| Frequency Band | 2.4 GHz |
| Compatible Bluetooth Profiles | HFP/SPP/A2DP/AVRCP/PBAP |
| Supported Codecs | SBC (Sub Band Codec) |
Vehicle Fitment Guide
Year(s) |
Make |
Model |
Trim Level |
|---|---|---|---|
| 2016-2019 | TOYOTA | TACOMA |
ALL TRIM LEVELS |
